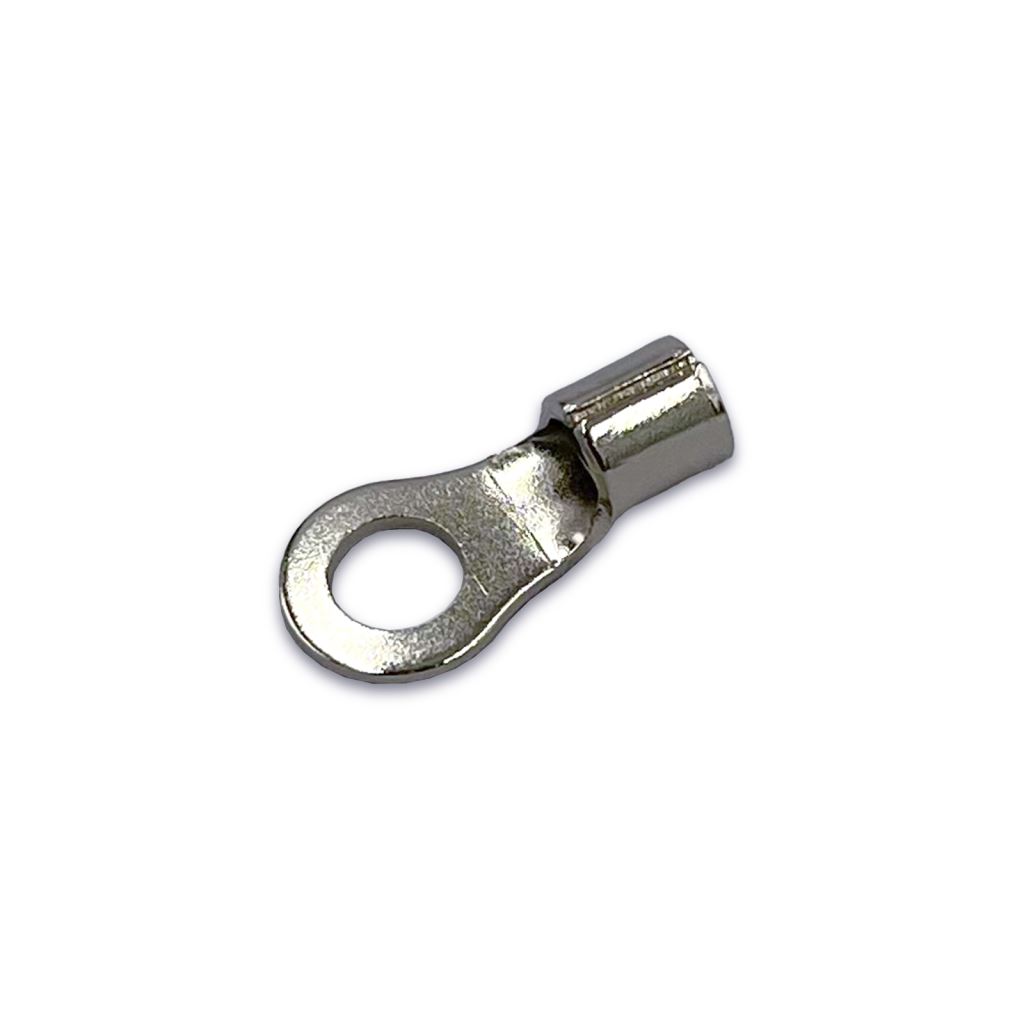

商品詳細介紹Product Introduction
WIRE RANGE
AWG / mm2 |
ITEM NO. |
STUD SIZE d2 |
DIMENSION inch(mm) |
| B |
L |
F |
E |
D |
d1 |
t |
22~16 AWG
0.5~1.5 mm2 |
RG1-3.5SN2
|
#6 (3.7)
|
.217(5.5) |
.461(11.7) |
.157(4.0) |
.197(5.0) |
.134(3.4) |
.063(1.6) |
.031(0.8) |
|
RG1-3.5MN2
|
.260(6.6) |
.575(14.6) |
.248(6.3) |
|
RG1-4SN2
|
#8 (4.3)
|
|
RG1-5N2
|
#10 (5.3)
|
.315(8.0) |
.630(16.0) |
.276(7.0) |
|
RG1-6N2
|
1/4 (6.5)
|
.457(11.6) |
.858(21.8) |
.437(11.1) |
|
RG1-8N2
|
5/16 (8.4)
|
|
RG1-10N2
|
3/8 (10.5)
|
.535(13.6) |
1.012(25.7) |
.547(13.9) |
16~14 AWG
1.5~2.5 mm2 |
RG2-3.5MN2
|
#6 (3.7)
|
.260(6.6) |
.571(14.5) |
.248(6.3) |
.197(5.0) |
.161(4.1) |
.091(2.3) |
.031(0.8) |
|
RG2-3.5LN2
|
.335(8.5) |
.669(17.0) |
.307(7.8) |
|
RG2-4XLN2
|
#8 (4.3)
|
.374(9.5) |
.287(7.3) |
|
RG2-5SN2
|
#10 (5.3)
|
.335(8.5) |
.307(7.8) |
|
RG2-5LN2
|
.374(9.5) |
.287(7.3) |
|
RG2-6N2
|
1/4 (6.5)
|
.472(12.0) |
.866(22.0) |
.433(11.0) |
|
RG2-8N2
|
5/16 (8.4)
|
|
RG2-10N2
|
3/8 (10.5)
|
.535(13.6) |
1.012(25.7) |
.547(13.9) |
12~10 AWG
4~6 mm2 |
RG5-3.5LN2
|
#6 (3.7)
|
.374(9.5) |
.748(19.0) |
.327(8.3) |
.236(6.0) |
.220(5.6) |
.134(3.4) |
.039(1.0) |
|
RG5-4LN2
|
#8 (4.3)
|
|
RG5-5N2
|
#10 (5.3)
|
|
RG5-6N2
|
1/4 (6.5)
|
.472(12.0) |
.886(22.5) |
.413(10.5) |
|
RG5-8N2
|
5/16 (8.4)
|
.591(15.0) |
1.071(27.2) |
.539(13.7) |
|
RG5-10N2
|
3/8 (10.5)
|
8 AWG
8 mm2 |
RG8-6SN2
|
1/4 (6.5)
|
.472(12.0) |
.925(23.5) |
.382(9.7) |
.335(8.5) |
.280(7.1) |
.177(4.5) |
.047(1.2) |
商品備註說明Product Remark
MAX TEMPERATURE : 482 °C
TERMINAL MATERIAL : STEEL
PLATING : NICKEL PLATING
